SAUMA International as a manufacturer is able to supply and fully equip ESP Workshop with the full set of equipment and benches for manufacturing and service ESP equipment.
Motor Test Bench
MIST is designated for tests of submersible Asynchronous and Permanent Magnet motors.
MIST is designed to carry out the following types of tests:
• Measurement of phase resistance of the stator winding at direct current;
• Measurement of the insulation resistance of the stator winding relative to the housing;
• Determination of the polarization index of the insulation of the stator winding;
• Insulation test of the stator winding relative to the housing for electrical strength;
• Short circuit test;
• Control of idling parameters – phase voltages, linear currents, power consumption, determination of the direction of rotation of the rotor, measurement of shaft rotation frequency, measurement of housing vibrations;
• Housing temperature measurement;
• Measurement of the run-down time of the rotor;
• Determination of acceleration voltage;
• Determination of current and idle losses;

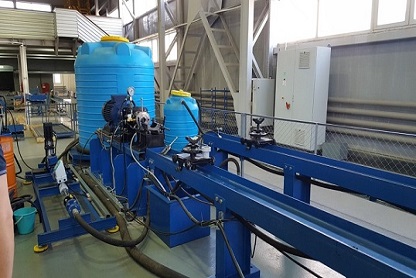

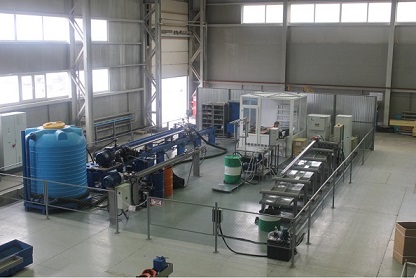

Horizontal Pump Test Bench
HPTS is designated for tests of submersible pumps of wide range.
HPTS is designed to test ESP pumps measures flow, power, pressure, vibration, and efficiency of ESP systems to certify them before being sent into the field for installation. An automated registration system displays test data and results in both tabular and graphical formats. It also processes and stores data for further analysis and enables quick configuration adjustments.
Test list and advantages of automated testing:
- Eliminates arbitrary interpretation of test results;
- Measures flow, shaft power and speed, inlet and outlet pressure, and stage efficiency;
- Enables testing of pump stages from other manufacturers with the ability to change rotation direction and frequency.

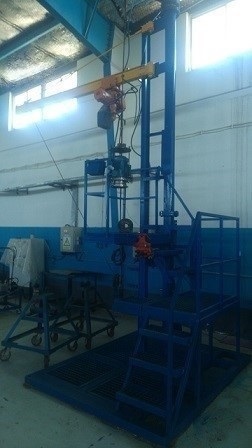

Protector Test Bench
The protector test bench is used to fill our ESP protectors with oil and to conduct run-in testing. Basic equipment includes a metal frame; a power module; hydraulic, pneumatic, and power moving systems; a pneumatic cylinder; a rigid retainer; an electric hoist; a control panel; and a pallet.
Test list:
- Conducting a run-in test with right and left rotation
- Performing hydroprotection test at axial pressure with right and left rotation
Also available equipment for the Workshop:
- Pump rack
- Pump shaft rack
- Motor shaft Rack
- Protector assembly workbench
- Shaft straightener
- Pump assembly/teardown workbench
and so on
