SAUMA International as a Pump manufacturer is dealing with Spare parts and Consumables supply both production our own and our partners. We offer high quality materials for ESP installation, assembly and dismantle.

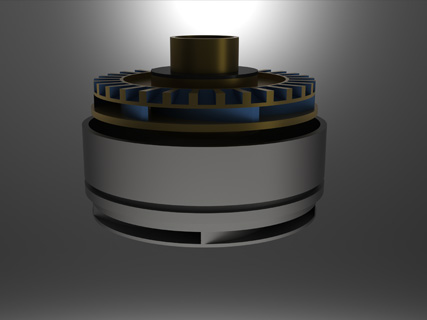

Pump stages. Impellers and Diffusers are different type and sizes manufactured using both main methods Casting and Powder Metallurgy.
High quality raw materials are used for stages manufacturing: Modified gray cast iron, Ni-resist and Stainless Steel.

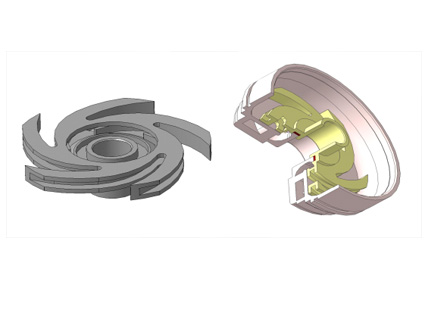

Impellers and Diffusers for Open Stage type ESP pump

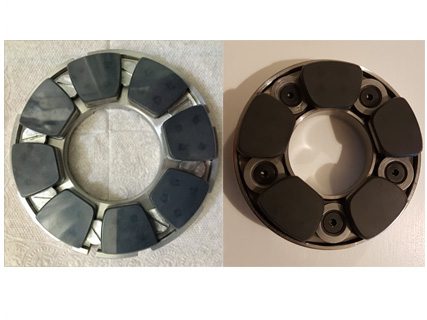

Bearings, Trust bearings. with PEEK working surface.

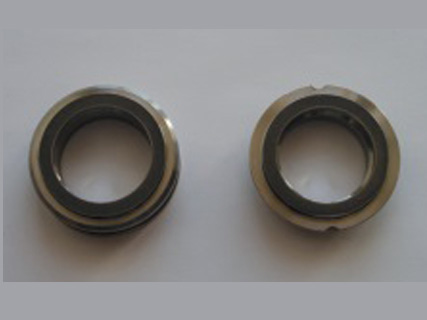

Mating Rings. Made from wolfram carbide
Working life of our parts is long and meets ESP working regime requirements to such items

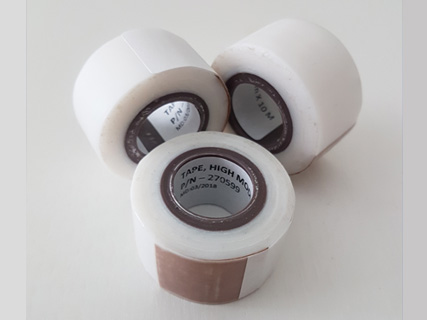

Hi Modulus, White Tape, p/n 270599
Skived PTFE with acrylic adhesive. This tape is used primarily for down-hole cable splicing which requires good adhesive strength at elevated temperatures. Film thickness 0.12 mm (0.005”) Adhesive thickness 0.07 mm (0.003”)
1″x 10yds or 18yds with no liner

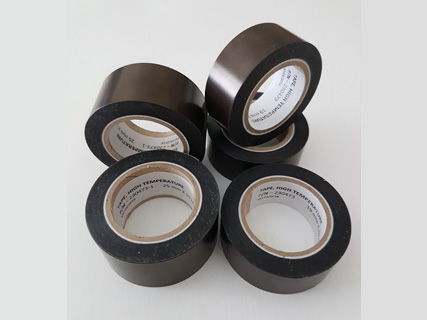

Hi Temperature, Brown Tape, p/n 230473
Skived PTFE with silicone adhesive. This tape is used primarily in electrical applications including capacitor insulation and cable termination insulation. Film thickness 0.09 mm (0.0035”) Adhesive thickness 0.07 mm (0.003”)
1″x 10yds or 18yds with no liner

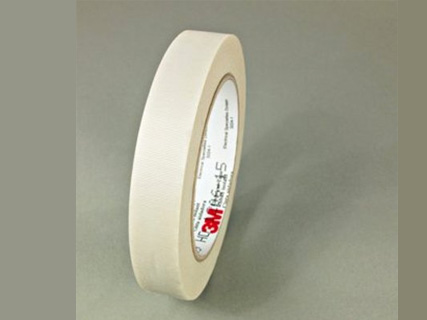

Woven Fiberglass Tape, 3M #79
Woven fiberglass tape (“E” type) with acrylic adhesive. This tape is usedfor ESP cable splices wrap. Thickness 0.18 mm (0.007”).
1″x60yds

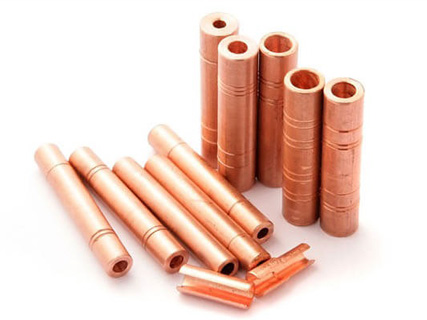

Copper Sleeves
Thesecopper sleeves are usedfor ESP cable splicing. Available in AWG standard
